APPLICATION:

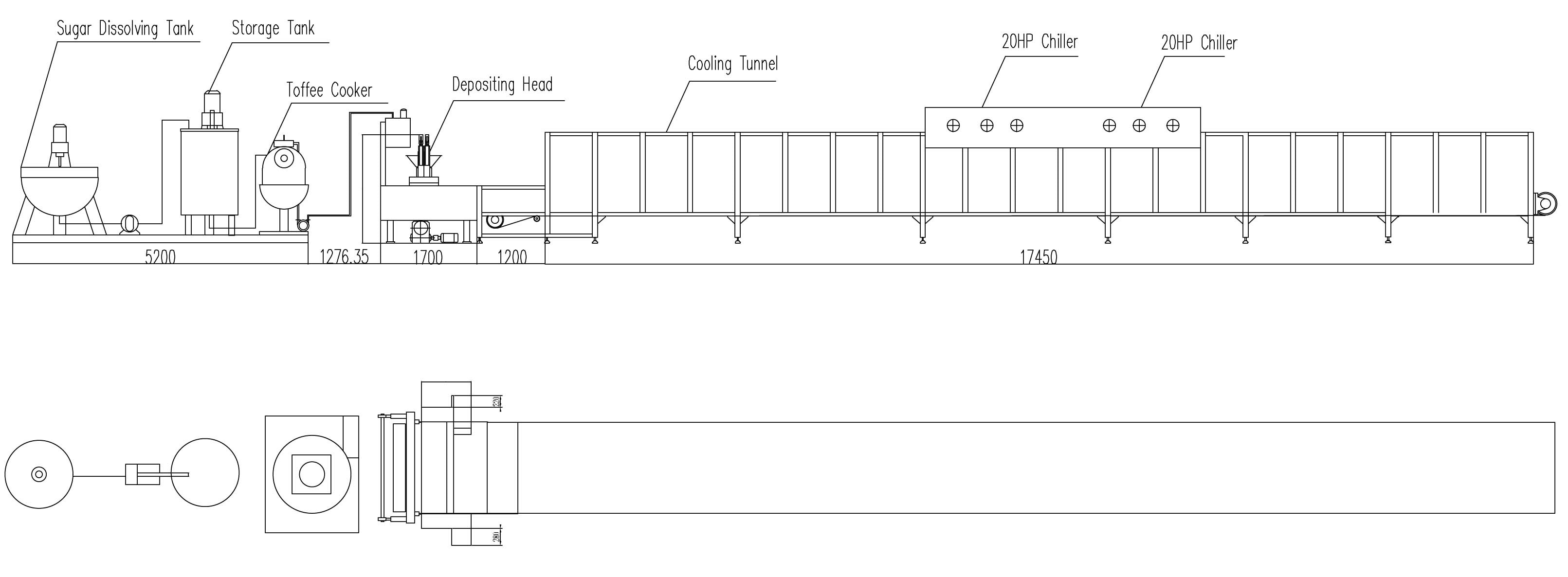

The toffee depositing production line is the most advanced equipment for producing kinds of toffee. The toffee depositing production line uses silicon toffee mould and aluminium toffee mould . It can be produce pure toffee, hard toffee ,double color toffee, toffee center filling ,stripe hard toffee with center filling and so on .This toffee depositing production line adopts mechanical automatic syrup depositing and demoulding method.There are 2 units water-cooling system chiller installed on the extended cooling tunnel, which greatly improves the cooling effect and production efficiency of toffee candy.
Technical Details:
Model | YLTM-I | YLTM-II | YLTM-III | YLTM-V |
Capacity | 150kg/h | 300kg/h | 450kg/h | 600kg/h |
Power | 30kw | 45kw | 60kw | 75kw |
Air Consumption | 0.5m3/min | 0.5m3/min | 0.5m3/min | 0.5m3/min |
Steam Consumption | 300kg/h | 300kg/h | 450kg/h | 450kg/h |
Steam Pressure | P<0.7Mpa | P<0.7Mpa | P<0.7Mpa | P<0.7Mpa |
Water Consumption | 2200L/h | 2200L/h | 2200L/h | 2200L/h |
Humidity | 55% | 55% | 55% | 55% |
Dimension | 20000X1500X2700mm | 20000X2000X2700mm | 20000X2360X2700mm | 20000X2720X2700mm |
Weight | 6000kg | 7500kg | 8500kg | 9500kg |
